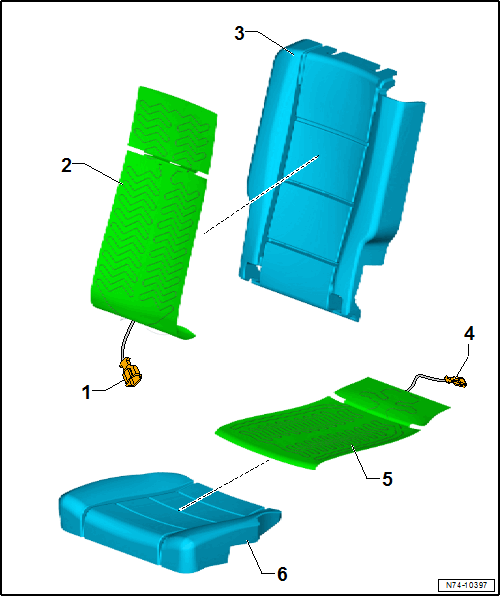

Overview - Seat Heating Element
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Wire
- Rear Seat Backrest Heating Element
- Left Rear Backrest Heating Element -Z11-
- Right Rear Backrest Heating Element -Z13-
- Removing and Installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
- Allocation. Refer to the appropriate Electronic Parts Information.
- Backrest Cushion
- Allocation. Refer to the appropriate Electronic Parts Information.
- Wire
- Bench Seat Heating Element
- Left Rear Bench Seat Heating Element -Z10-
- Right Rear Bench Seat Heating Element -Z12-
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
- Allocation. Refer to the appropriate Electronic Parts Information.
- Seat Cushion
- Allocation. Refer to the appropriate Electronic Parts Information.
