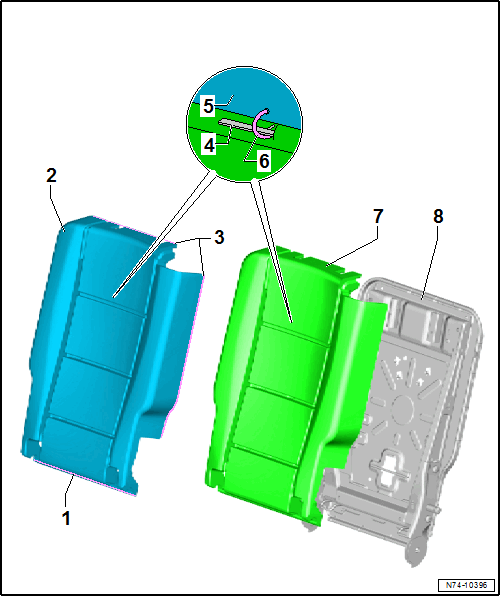

Overview - Single Seat Cover And Cushion
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Molding Strip
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Backrest Cover
- Different equipment levels
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Molding Strip
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Upholstery Wire
- Component of the backrest cushion
- Wire with Backrest Cover
- For attaching the backrest cover to the backrest cushion
- Upholstery Clip
- Attaching the backrest cover to the backrest cushion
- Replace after removing
- Backrest Cushion
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest Frame
