Backrest Heating Element, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Separate the backrest cover and backrest cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

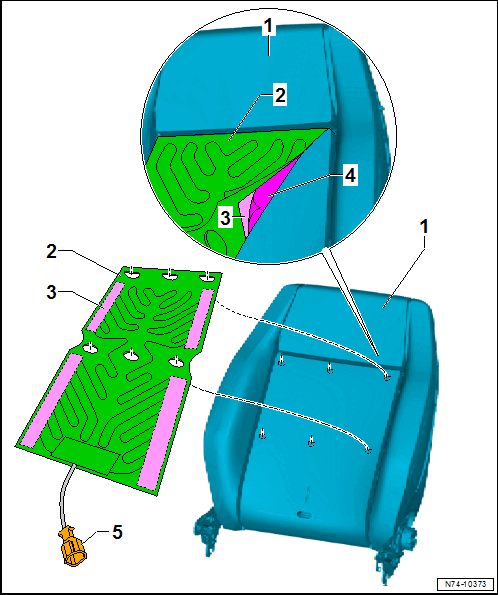

-- Disconnect the wire -5- directly from the old heating element -2-.
NOTE:
The old heating elements remain on the cushion -1- and will be covered over by the new heating element.
