Overview - Seat Pan Cover And Cushion

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

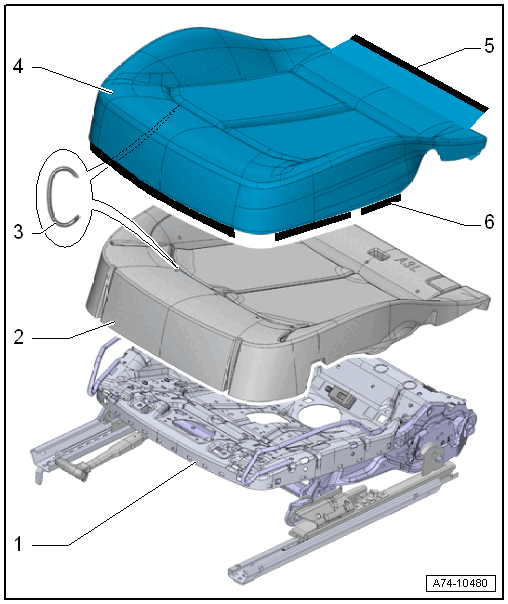

Fig 1: Exploded View Of Seat Pan Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
Seat Cushion
- Allocation. Refer to the appropriate Electronic Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Upholstery Clip
- For attachment of the seat cover to the seat cushion
- Replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
Seat Cover
- Different equipment levels
- Allocation. Refer to the appropriate Electronic Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Molding
- Sewn into seat cover
- For engaging the seat cover on seat pan upper frame
- Make sure it fits correctly in the seat pan upper frame
Molding
- Sewn into seat cover
- For engaging the seat cover on seat pan upper frame
- Make sure it fits correctly in the seat pan upper frame
