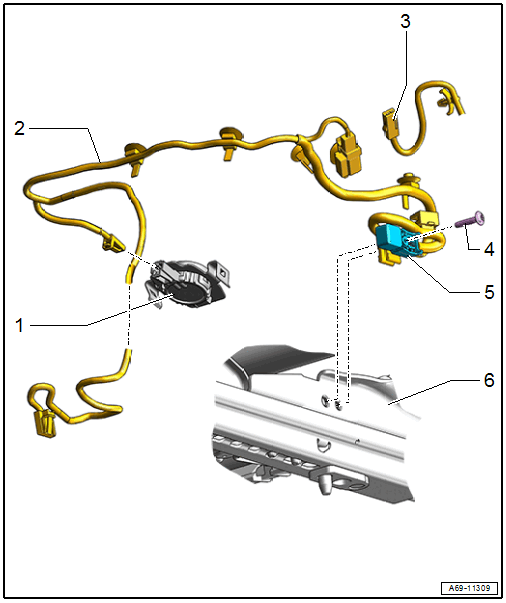

Overview - Seat Position Sensor
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Seat Occupant Detection Sensor -G128-
- Only the front passenger side
- Removing and Installing. Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
- Wiring Harness
- Seat position sensor/passenger occupant detection sensor/seat belt switch
- Available only with -item 5-
- Clip into the seat pan
- Black connector, connector station in the vehicle floor
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
- Seat Belt Latch Connector Coupling
- Bolt
- 1.2 Nm
- Seat Position Sensor
- Driver Seat Position Sensor -G553-
- Front Passenger Seat Position Sensor -G554-
- Available only together with -item 2-
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
- Seat Rail
- Tunnel-side
