Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling airbag units (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Secure the seat on the seat repair fixture.

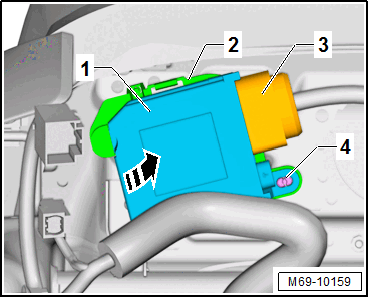

-- Disconnect the connector -3- from the Passenger Occupant Detection System Control Module -J706- -1-.
-- Loosen the locking mechanism -4-.
-- Remove the Passenger Occupant Detection System Control Module -J706- -1- from the bracket -2- in the -direction of the arrow-.
