Passenger Occupant Detection System Control Module -J706- BRACKET, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Passenger Occupant Detection System Control Module -J706-. Refer to Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING .

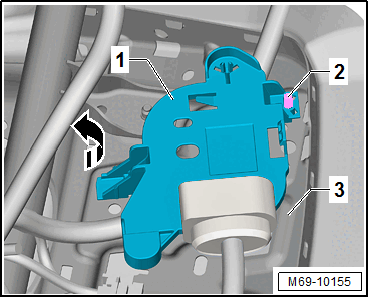

-- Remove the clamping pin on the clip -2- and then loosen the clip.
-- Remove the bracket -1- from the seat frame -3- in the -direction of the arrow-.
