Rear Seat Belt Latch, Removing And Installing, Second Row, 7 Seats: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the seat side trim. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .

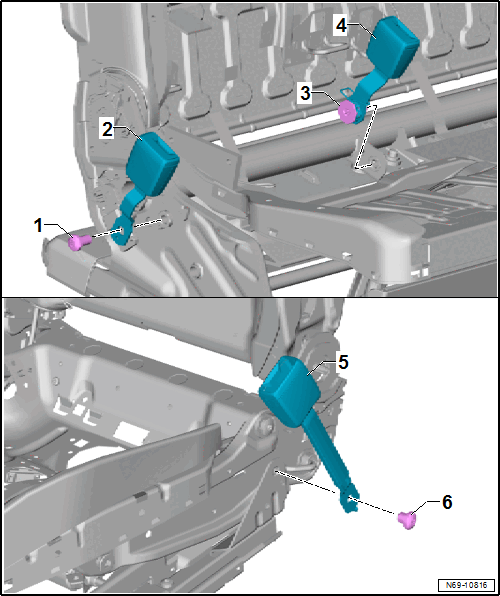

-- Remove the bolt -1-.
-- Remove the center seat belt latch -2-.
-- Remove the bench seat cover and cushion. Refer to OVERVIEW - BENCH SEAT COVER AND CUSHION .
-- Remove the bolt -3- and remove the driver side seat belt latch -4- together with the bolt -3- from the seat frame.
-- Remove the bolt -6-.
-- Remove the front passenger side seat belt latch -5-.
