Rear Seat Belt Anchor In Center Seating Position, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

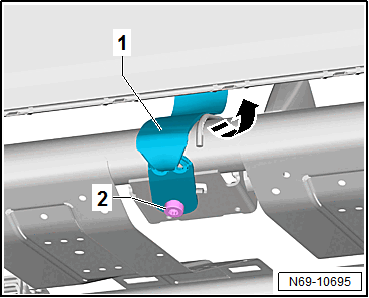

The belt end fitting must contact the anti-twist mechanism on the rear seat frame.

-- Tighten the belt end fitting -1- with the bolt -2-.

The installation is in reverse order of removal, at the same time install the bolt -2- by hand.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
