Third Row Rear Belt End Fitting, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

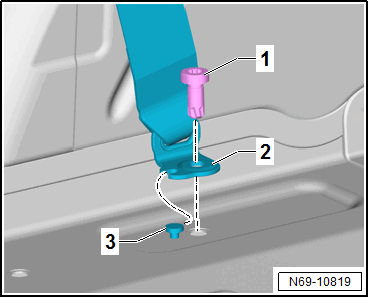

-- Insert the belt end fitting anti-twist mechanism -2- in the T-pin -3-.
-- Tighten the belt end fitting -2- with the bolt -1-.
-- Install the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
