Second Row Rear Outer Belt End Fitting, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

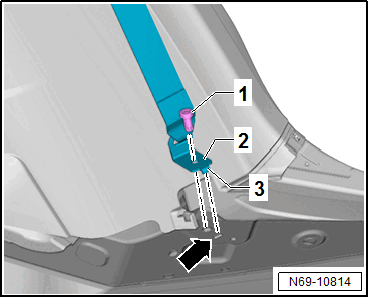

- The belt end fitting anti-twist mechanism -3- must be inserted in the hole of the floor panel -arrow-.
-- Tighten the belt end fitting -2- with the bolt -1-.
-- Install the sill panel strip. Refer to SILL PANEL, REMOVING AND INSTALLING .
