Front Seat Belt Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the B-pillar upper trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

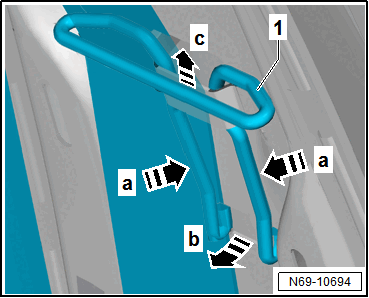

-- Press the seat belt guide bracket -1- together in the -a arrows-.
-- At the same time disengage the seat belt guide -1- downward from the body -arrow b-.
-- Remove the seat belt guide -1- upward with the bracket pushed together -arrow c-.
-- Thread the seat belt webbing out and remove the seat belt guide -1-.
