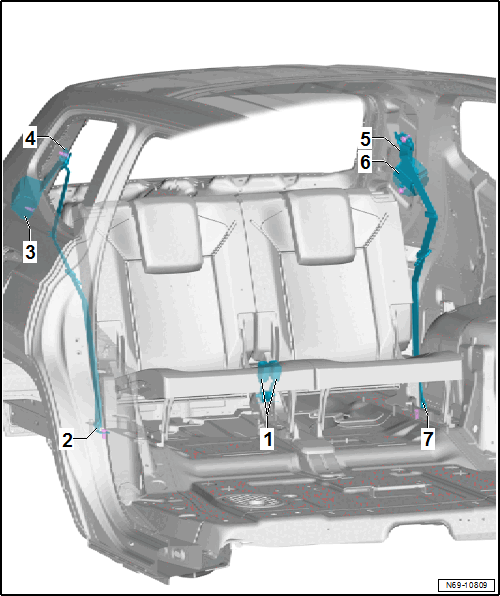

Component Location Overview - Seat Belts And Mounting Points, Third Row Seat
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Belt Latches
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, THIRD ROW .
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, THIRD ROW .
- Belt End Fitting
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Relay
- Seat Belt Relay
- Automatic Belt Retractor
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Belt End Fitting
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
