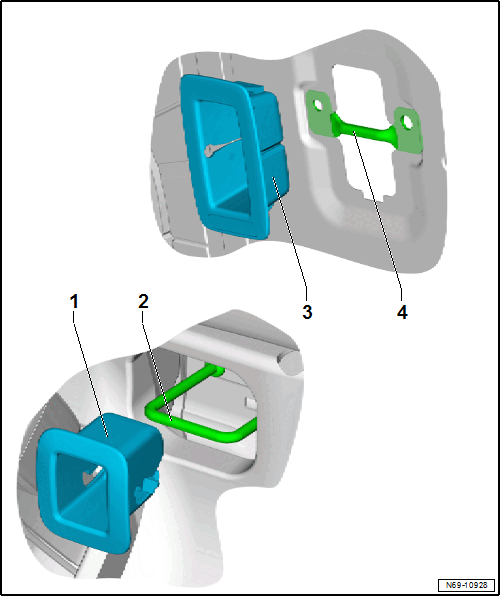

Overview - Rear Child Seat Anchors
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Child Seat Anchor Guide
- Must be secure on the anchor
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Child Seat Anchor
- Welded to the backrest frame
- Child Seat Anchor Cover
- Engage in the anchor and press on it until it engages audibly
- Can only be pushed onto the rear seat backrest in one position
- Removing and Installing. Refer to UPPER CHILD SEAT ANCHOR COVER IN REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Upper Child Seat Anchor
- Welded to the backrest frame
