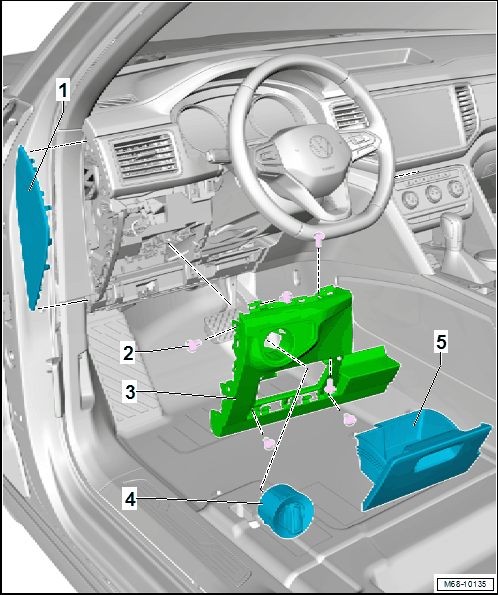

Overview - Instrument Panel Cover, Driver Side
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Side Instrument Panel Cover
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Bolt
- For the driver side instrument panel cover on the instrument panel
- Quantity: 8
- 1.5 Nm
- Driver Side Instrument Panel Cover
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
- Rotary Light Switch -EX1-
- Removing and installing. Refer to ROTARY LIGHT SWITCH -EX1-, REMOVING AND INSTALLING .
- Storage Compartment
- Engaged in the driver side instrument panel
