Glove Compartment, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- If equipped, remove the Information Electronics Control Module 1 -J794-. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .

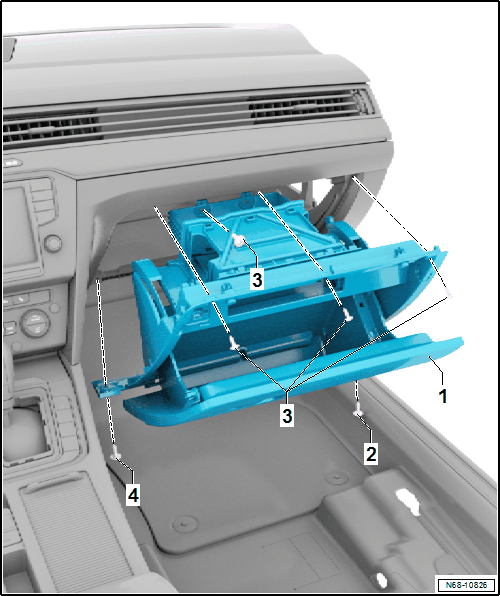

-- Remove the bolts -2- and -4- in the footwell.
-- Open the glove compartment lid -1- and remove the four bolts -3-.
-- Unclip the glove compartment from the instrument panel and remove it just far enough until the hose for the glove compartment cooling is accessible.
-- Remove the glove compartment cooling hose from the glove compartment.
-- Disconnect any connectors from the glove compartment, free up the wiring guides and remove the glove compartment.
