Glove Compartment Lid Service Position

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Moving into Service Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

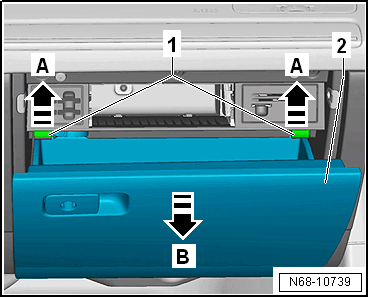

Glove compartment lid -2- is open.

-- Push the stops -1- for the glove compartment lid -2- upward -A arrows-.

-- Carefully open the glove compartment lid -2- approximately 5 cm -arrow B-.

CAUTION:

Do not exceed the 5 cm, otherwise the brake component shaft can be removed from the damper.

-- Move/release the steering rack -1- in -direction of the arrow- and remove it from the glove compartment lid.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

If when "moving into service position" the shaft -1- is removed from the damper, guide it carefully back in the damper.

NOTE:

If when "moving to service position" the damping element falls out of the damper, insert back into the damper and at the same time pay attention to the correct installation position.

Service Position, Resetting

-- Slowly close the glove compartment lid.

-- Close the glove compartment lid further and lock behind the end stops.
