Driver Side Instrument Panel Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument panel vent on the driver side. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the Rotary Light Switch -EX1-. Refer to ROTARY LIGHT SWITCH -EX1-, REMOVING AND INSTALLING .

-- Remove the instrument cluster trim. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .

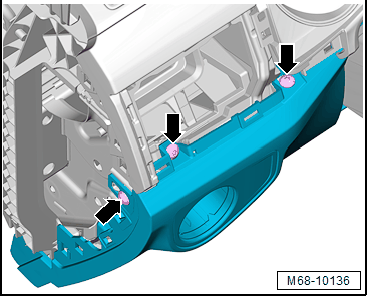

-- Remove the bolts -arrows-.

-- Open the storage compartment and remove it.

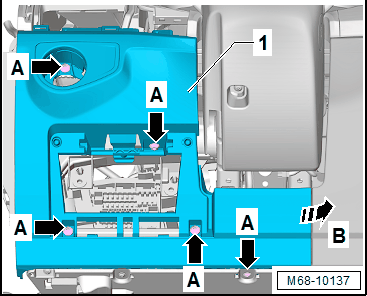

-- Remove the bolts -A arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the instrument panel cover -1- from the instrument panel -direction of the arrow B- and remove.
