Front Center Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the air duct.

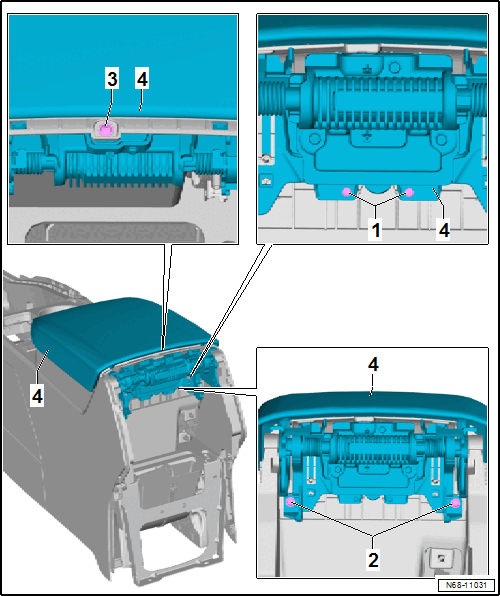

-- Remove the two bolts -1- for the center armrest -4-.

-- Remove the two bolts -2- for the center armrest -4-.

-- Remove the bolt -3- for the center armrest -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

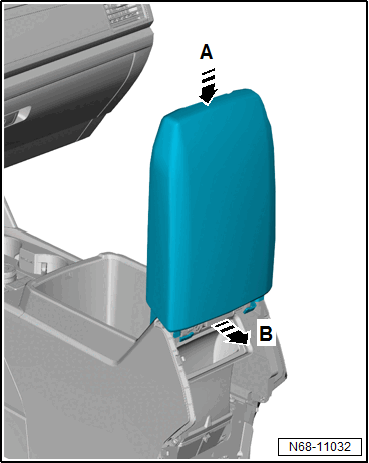

-- Fold up the center armrest -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the center armrest -1- with force downward -arrow A-.

-- Pivot the center armrest -1- to the front in a "slightly angled" position.

-- Remove the center armrest -1- rearward from the center console -arrow B-.
