Sun Visor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

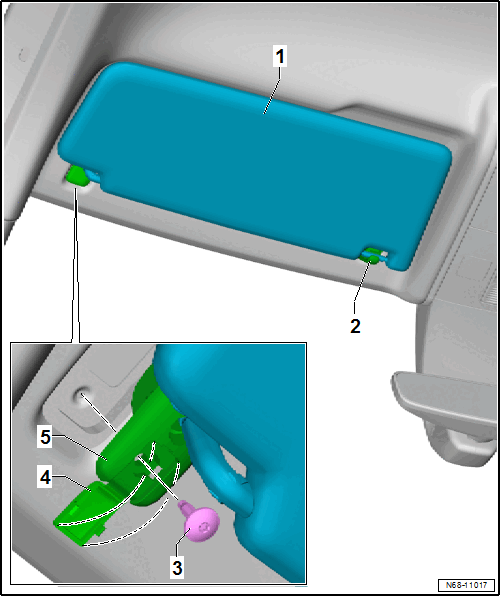

-- Open the cap -4- on the sun visor outer mount -5-.
-- Remove the bolt -3-.
-- Fold down the sun visor -1- and disengage from the sun visor center bearing -2-.
-- Remove the sun visor -1- with the sun visor outer mount -5- from the roof crossmember and disconnect the connector.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
