Front FOOTWELL Center Console Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

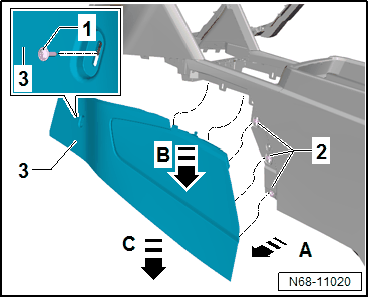

-- Remove the bolt -1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Unclip the center console footwell trim panel -3- from the three center console mounts -2- -arrow A-.
-- Remove the center console footwell trim panel -3- from the center console mounts -B and C arrows-.
