Display Control Head Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

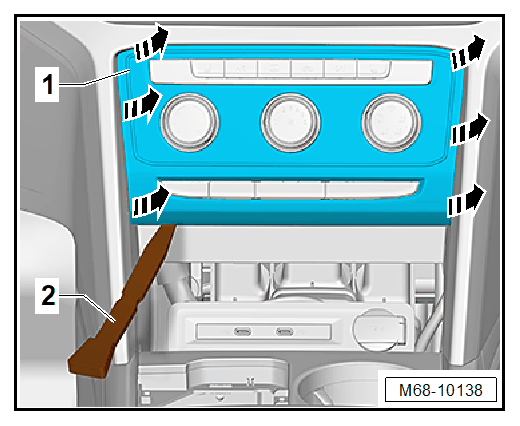

GWWM68-10138Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a suitable scraper -2-, carefully unclip the trim -1- all around -arrows- and then remove.
