Center Console Rear Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.
-- Pull the rear trim -1- at the lower end off of the center console -2- toward the rear.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

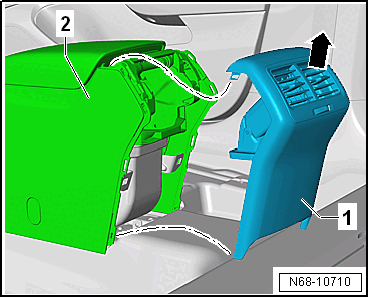

-- Pull the rear trim -1- upward off of the center console -2- -arrow- and remove it.
