Bracket On Gear Shift Mechanism And Securing Bracket, Removing And Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1783 - 2-10Nm:V.A.G 1783

Fig 1: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket on Gear Shift Mechanism, Removing

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

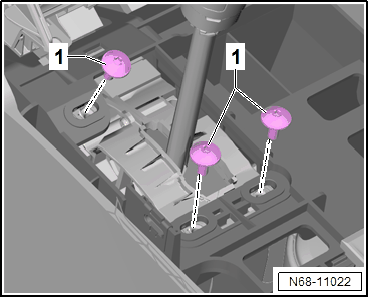

-- Remove the three bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

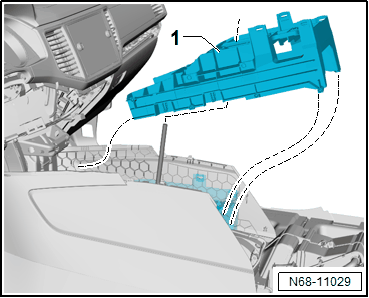

-- Lift the bracket on the gear shift mechanism -1- in the rear area and carefully remove over the selector lever or gearshift lever.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket on Gear Shift Mechanism, Installing

Install in reverse order of removal.

Securing bracket, removing

NOTE:

The removal and installation for the front bracket on the driver side is described. The removal and installation for the front passenger side is similar.

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

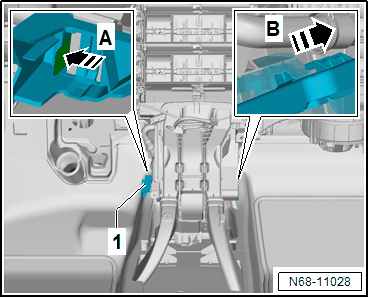

-- Remove the securing bracket -1- on the left side from the mount -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the securing bracket -1- to the right -arrow B- and remove.

Securing bracket, installing

Install in reverse order of removal.

Tightening Specifications

Refer to OVERVIEW - CENTER CONSOLE
