Right Seal, Replacing, AWD Vehicles

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1332 40-200Nm:VAG1332
Puller - Inner Output Shaft Seal:T10397
Puller - Outer Output Shaft Seal:T10398
Seal Installer - Inner Output Shaft:T10399
Seal Installer - Outer Output Shaft:T10400

Fig 1: Identifying Seal Pullers And Thrust Pieces
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Unit Injector:T10055

Fig 2: Identifying Puller T10055
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Unit Injector - Adapter 2:T10055/2
Commercially available drill
Commercially available metal drill bit, 2 to 4 mm
Sealing Grease:G 052 128 A1

NOTE:

There are two different possibilities for removing the seal from the right side.

Removal version A

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING, VEHICLES WITH 3.6L, 206 KW ENGINE .

Small Seal, Removing

-- Lock the Puller - Inner Output Shaft Seal:T10397 using the knurled bolt and mount the torque wrench.

-- Turn the Puller - Inner Output Shaft Seal in the seal -2-.

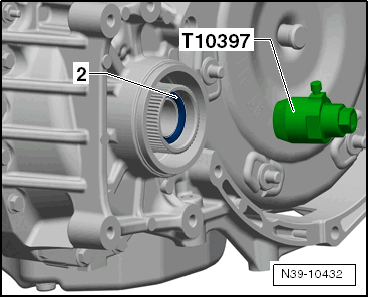

Fig 3: Identifying Seal Puller (T10397) And Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock the Puller - Inner Output Shaft Seal using the knurled bolt and turn again.

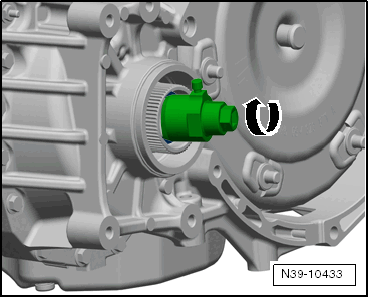

Fig 4: Identifying Removal Of Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seal.

NOTE:

If the seal falls down:

-- Mount the Puller - Inner Output Shaft Seal again and remove the seal.

Large Seal, Removing

-- Lock the Puller - Outer Output Shaft Seal:T10398 using the knurled bolt and mount the torque wrench.

-- Turn the puller to 100 Nm in the seal -1-.

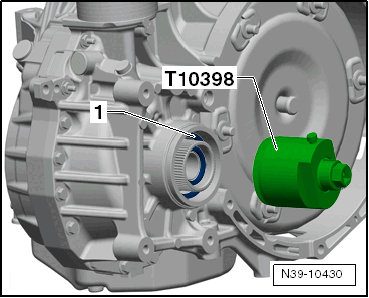

Fig 5: Identifying Seal Puller (T10398) And Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock the Puller - Inner Output Shaft Seal using the knurled bolt and turn again.

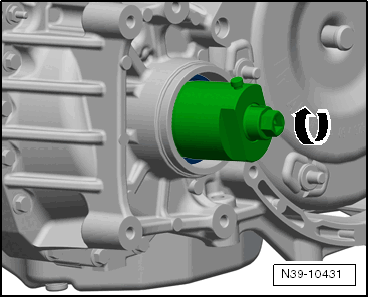

Fig 6: Identifying Seal Puller -T10398-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seal.

NOTE:

If the seal falls down:

-- Install the puller into the seal (120 Nm).

-- Remove the seal.

Removal Version B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING, VEHICLES WITH 3.6L, 206 KW ENGINE .

-- Grease the drill bit -3- so that the shavings stick to it.

CAUTION:

There is a risk of damaging the bearing behind the shaft seal.

Only drill through the metal ring of the shaft seal.
Do not install the screw too deep.

-- Seal the opening on the transmission for the drive axle with a clean cloth -2-.

-- Carefully drill a 2 to 4 mm hole into the outer metal ring -1- of the shaft seal.

-- Install a bolt (approximately 4 mm diameter) into the drilled out hole on the shaft seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the shaft seal with the Puller - Unit Injector:T10055 with the Puller - Unit Injector - Adapter 2:T10055/2 .

CAUTION:

Risk of damaging the transmission.

Drill shavings must not get into the transmission or into the opening for the drive axle. Vacuum up any shavings if necessary.

-- Carefully remove the cloth. Make sure that no shavings get into the transmission when doing so.

-- Carefully clean the transmission and the opening for the drive axle.

-- Coat the outer circumference and sealing lips on the new shaft seal with transmission fluid.

Fig 7: Identifying Oil Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation position: the open side of the seal faces the transmission.

Small Seal, Installing

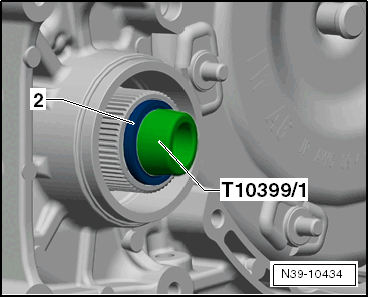

Fig 8: Identifying Seal And Assembly Tool (T10399/1)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Seal Installer - Inner Output Shaft:T10399/1 .

-- Place the seal -2- on the Seal Installer - Inner Output Shaft:T10399/1 .

-- Install the seal until it stops using the Seal Installer - Inner Output Shaft:T10399 .

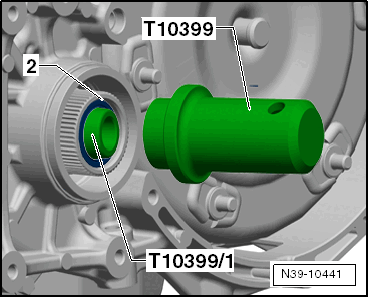

Fig 9: Identifying Seal And Assembly Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Large Seal, Installing

-- Place the seal -1- on the Seal Installer - Outer Output Shaft:T10400 .

The spring -arrow- points away from the thrust piece.

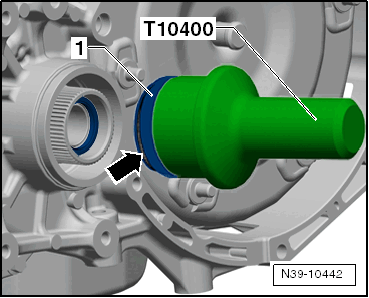

Fig 10: Identifying Seal And Thrust Piece (T10400)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the gasket all the way.

-- Turn the thrust piece inside the transmission before removing it.

-- Install the bevel box. Refer to BEVEL BOX, INSTALLING, VEHICLES WITH 3.6L, 206 KW ENGINE .

-- Check the ATF level and add ATF if necessary. Refer to ATF .
