Stub Shaft Needle Bearing (Polygon Bearing), Replacing: Notes

Fig 1: Identifying Special Tools - Needle Bearing (Polygon Bearing) For Right Flanged Shaft, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Plate:VW401
• Press Plate:VW402
• Press Piece - Rod:VW407
• Press Piece - Multiple Use:VW412
• Rear Wheel Bearing Kit - Piece 5:3253/5
• Bearing Installer - Needle Bearing:T10047

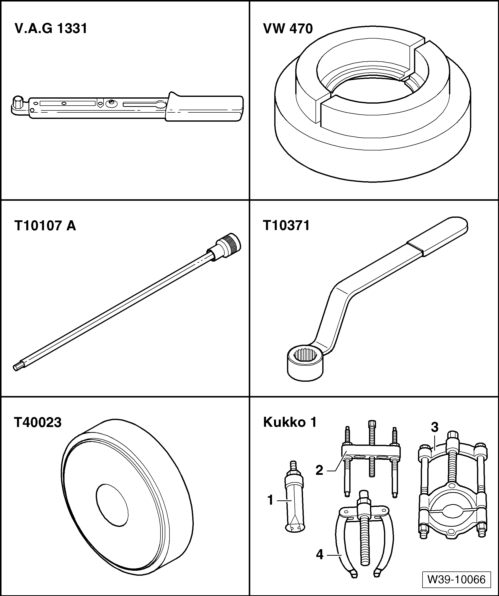

Fig 2: Identifying Counter Hold Tool, Thrust Piece And Torque Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Torque Wrench, 6-50Nm:VAG1331A
• Bearing Installer - Pinion Bearing:VW470
• Socket and Extended Bit:T10107A
• Thrust Piece:T40023
• -3- 22 to 75 mm Separating Tool, such as :VAS251409
