Left Seals Between Bevel Box And Transmission On Bevel Box, Replacing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Slide Hammer Set:VW771

Fig 1: Identifying Slide Hammer Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer Set - Hook:VW771/37

Fig 2: Identifying VW771/37 Tool
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Crankshaft/Power Steering Seal:T20143

Fig 3: Crankshaft / Power Steering Seal Puller
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Seal Installer - Hollow ShaftSeal Installer - Hollow Shaft:T10380

Fig 4: Identifying Thrust Piece - T10380-
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

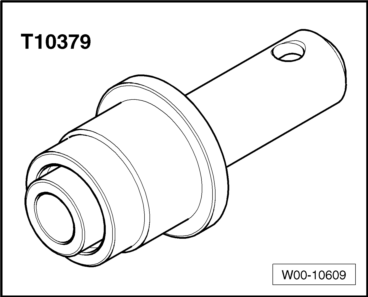

Seal Installer - Stub Shaft:T10379

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The seals (quantity: 2) can only be replaced when the bevel box is removed. Always replace both seals.
