Component Location Overview - Electrical Components, Rear Final Drive With All Wheel Drive Clutch Generation V
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

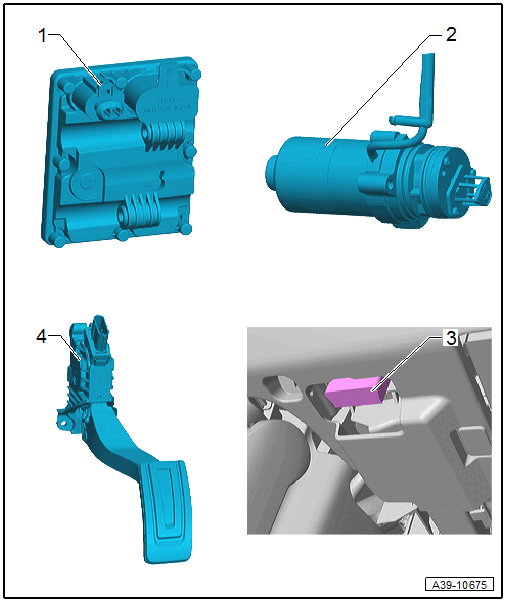

- All Wheel Drive Control Module -J492-
- Important signals are transmitted from the engine control module and ABS Control Module -J104- via the data bus to the All Wheel Drive Control Module -J492-.
- Removing and installing. Refer to All Wheel Drive Control Module -J492-, REMOVING AND INSTALLING .
- All Wheel Drive Clutch Pump -V181-
- Can be checked in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Removing and installing. Refer to All Wheel Drive Clutch Pump -V181-, REMOVING AND INSTALLING .
- Data Link Connector
- Component location: inside the left front footwell
- Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
- Removing and installing. Refer to the appropriate Service Information .
