Cylinder Head Cover, Removing And Installing

Fig 1: Identifying Special Tools - Cylinder Head Cover, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Spring Clip Pliers:VAS 6499
• Torque Wrench, 6-50Nm:VAG 1331A
• Elbow Assembly Tool:T10118
• Puller - Ignition Coil:T10095A

Removing

Any cable ties which are opened or cut open when removing, must be replaced in the same position when installing.

-- Remove the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

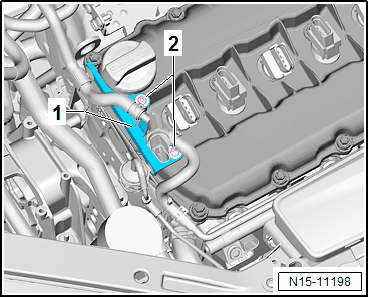

-- Remove the bolts -2- for the retainer -1- from the cylinder head cover.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ignition coils. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Pull off/disconnect all other wires from the cylinder head cover and set them to the side.

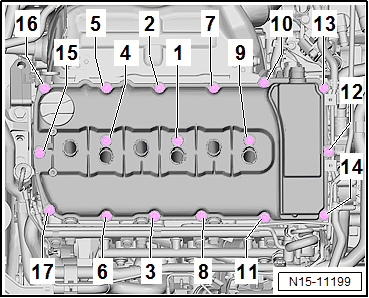

-- Loosen the cylinder head cover bolts starting from the inside and working toward the outside -17 through 1-.

Fig 2: Cylinder Head Cover Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts and the cylinder head cover.

Installing:

Fig 3: Identifying Cover Sealant Application Areas

Courtesy of AUDI OF AMERICA, LLC

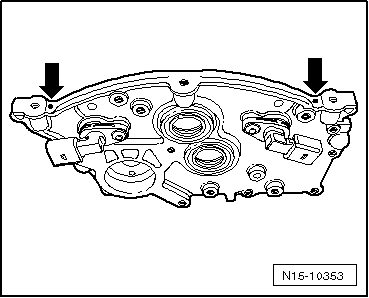

-- Place a little Sealant:D 454 300 A2  on the locations -arrows- marked on the cover.

-- Install the cylinder head cover and tighten the bolts evenly starting on the inside and working toward the outside. Refer to Figure.

-- Install the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

-- Fill the coolant, if necessary. Refer to COOLANT, DRAINING AND FILLING .
