Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

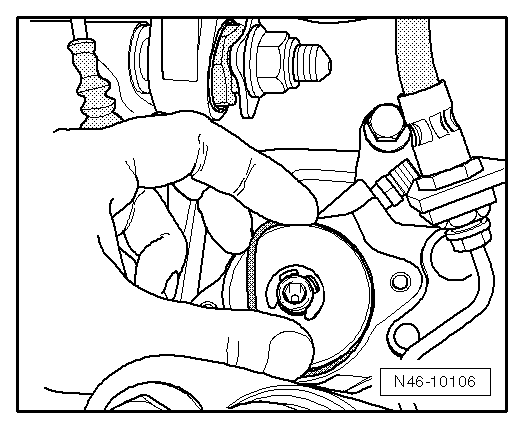

-- Lightly grease the seal and install, while doing so do not twist or damage the seal.

Fig 1: Identifying Installation Of Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Completely grease the TORX^® socket on the parking brake motor drive axle.

NOTE:

Do not remove the gasket when assembling the parking brake motor.

-- Carefully push the parking brake motor on the brake caliper while doing so pay attention that the seals are seated correctly.

NOTE:

If necessary slightly turn back the drive axle using a E11 TORX^® socket -A- so that the parking brake motor can be correctly positioned.

-- Rotate the parking brake motor until the bolt hole and threads are aligned.

Fig 2: Identifying Spindle Turned Back Slightly With Help Of Torx Insert T45

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Make sure that the parking brake motor is seated flush against the brake caliper. Do not, under any circumstances, pull the parking brake motor against the brake caliper using the bolts.

-- Set the hex socket bolts -arrows- in place by hand and then tighten.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the connector -1-.

-- Perform the basic setting of the brake system using the Vehicle Diagnostic Tester.

Tightening Specification

Refer to COMPONENT LOCATION OVERVIEW - PARKING BRAKE
