Brake Pads, Removing And Installing, Front Brakes: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Label the brake pads when removing if they are going to be used again. Install in the same position, otherwise the braking effect will be uneven.

-- Remove the wheels on the front axle.

-- Disconnect the connector for the brake pad wear indicator if equipped.

The brake pad wear indicator if equipped is installed at the front right.

-- Counterhold the guide pin and remove the lower bolts from the brake caliper.

Fig 1: Installing Brake Caliper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold up the brake caliper -1- and secure using a wire.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

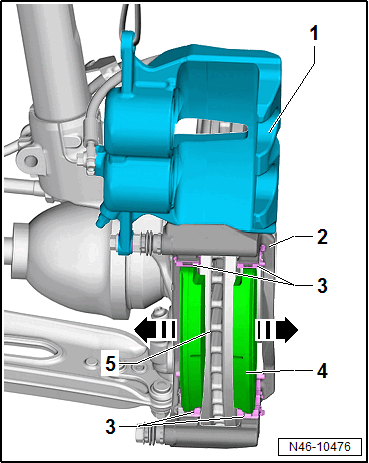

-- Remove the brake pads -4 and 5- from the brake carrier -2-.

-- Remove the brake pad retaining plates -2 through 5- from the brake carrier -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cleaning:

CAUTION:

Health risk due to toxic dust from the brake system.

Irreversible deposit of dust particles in the lungs. Breathing impairments may occur.

- Never blow out the brake system with compressed air.

-- Thoroughly clean contact surfaces for brake pads at brake carrier and remove corrosion.

-- Clean the brake caliper.

NOTE:

Only use mineral spirits for cleaning the brake caliper.
