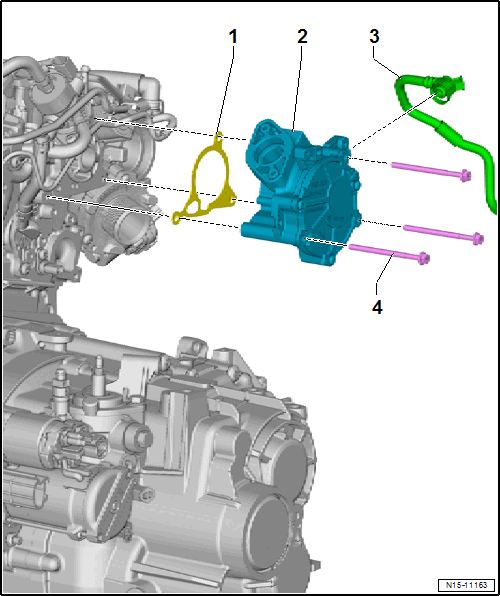

Brake Booster Vacuum Pump, 2.0L Gasoline Engine
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Gasket
- Replace after removing.
- Vacuum Pump
- Disassembling the vacuum pump is not possible.
- Removing and installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING - 2.0L , VACUUM PUMP, REMOVING AND INSTALLING - 3.6L .
- Vacuum Hose
- To the Brake Booster
- Bolts
- Tightening specification. Refer to [For engine(s) DTFA] Cylinder Head .
