Overview - Rear Brake Caliper

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Install the entire repair kit when servicing.
Only use mineral spirits to clean the brakes.
New brake calipers are filled with brake fluid and are pre-bled.

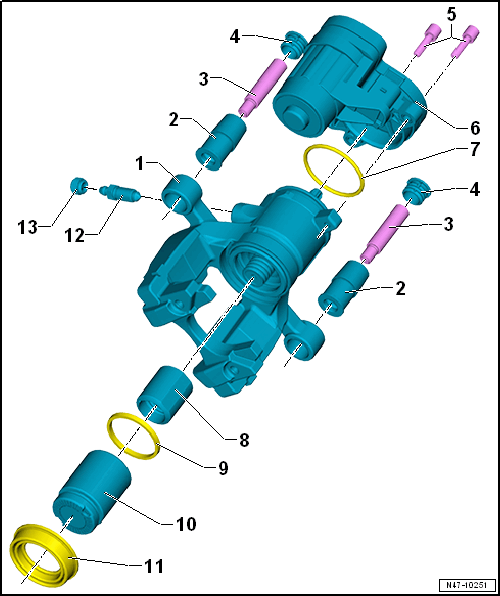

Fig 1: Exploded View Of Rear Brake Caliper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake Caliper
Damping Sleeves
Guide Pin
Caps
Hex Socket Bolt
- 8 Nm
Parking Brake Motor
Seal
- Always replace
Thrust Nut
- Removing and installing is not possible.
Seal
- Removing and installing is not possible.
Piston
- Removing and installing is not possible.
Protective Cap
- Removing and installing. Refer to DUST CAP, REMOVING AND INSTALLING .
  NOTE:
  To change the protective cap the brake caliper does not need to be removed, do not remove the brake hose.
Breather Valve
- 10 Nm
- Lightly grease the threads with assembly paste G 052 150 A2 before installing.
Dust Cap
