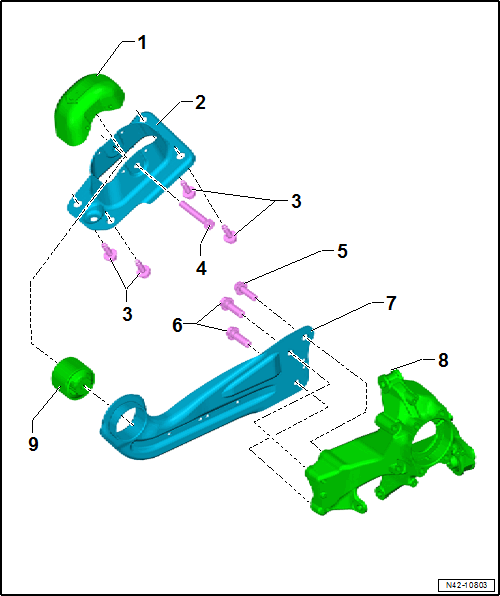

Overview - Trailing Arm
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- Mounting Bracket
- Bolt
- 50 Nm +45°
- Replace after removing.
- Bolt
- 90 Nm + 90°
- Replace after removing.
- Bolt
- 70 Nm +90°
- Replace after removing.
- M14 x 1.5
- Bolt
- 70 Nm +90°
- Replace after removing.
- M12 x 1.5
- Trailing Arm
- Removing and installing. Refer to TRAILING ARM WITH MOUNTING BRACKET, REMOVING AND INSTALLING .
- Wheel Bearing Housing
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Bonded Rubber Bushing
- Note the installation position
- Replacing. Refer to TRAILING ARM, SERVICING .
