Rear Axle Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

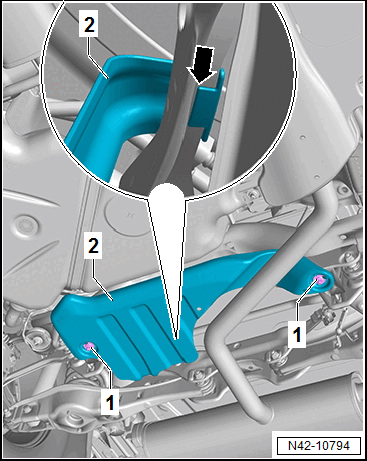

-- Remove the nuts -1-.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Remove the trim panel -2- downward from the subframe while disengaging it on top of the subframe -arrow-.
