Upper Transverse Link, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Remove the spring. Refer to SPRING, REMOVING AND INSTALLING .

-- If equipped, disengage the line from the bracket on the transverse link.

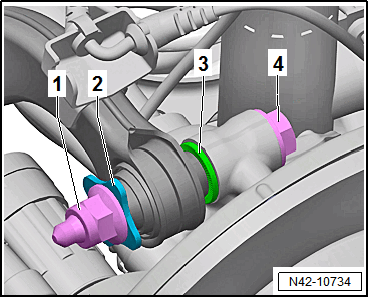

-- Unscrew the nut -1- and remove the washer -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -4-.

-- Remove the washer -3-.

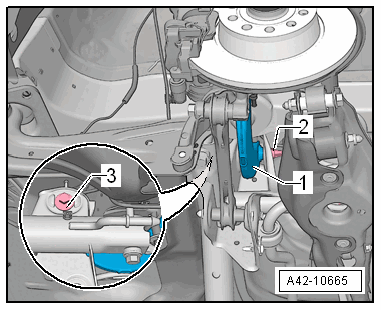

-- Mark the position of eccentric screw -3- to the subframe using, for example, a felt-tip marker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -2- and the eccentric screw -3-.

-- Remove the upper transverse link -1-.
