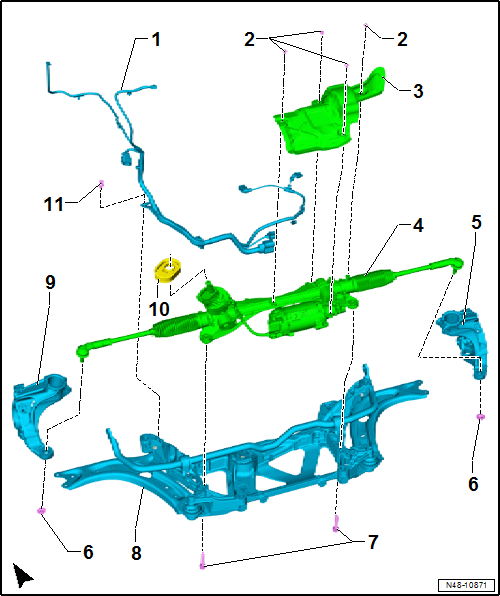

Overview - Steering Gear, LHD Vehicle
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Overview - Steering Gear, Tie Rods APA. Refer to Overview - Steering Gear, Tie Rods APA .
Overview - Steering Gear, Tie Rods, ZF. Refer to Overview - Steering Gear, Tie Rods, ZF .
CAUTION:
If the universal joint is separated from the steering gear, the following work cannot be performed:
- Connecting the battery
- Switching on the ignition
- Turning the steering gear
- Turning the steering column.
These points must be observed since performing these actions could cause irreparable damage.
- Wire
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Bolt
- 8 Nm
- Depending on the engine installed, three or four are installed. Refer to the appropriate Electronic Parts Information.
- Heat Shield
- Depending on the engine installed, there are different versions. Refer to the appropriate Electronic Parts Information.
- Steering Gear
- Overview APA. Refer to Overview - Steering Gear, Tie Rods APA .
- Overview ZF. Refer to Overview - Steering Gear, Tie Rods, ZF .
- Removing and installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
- There are different versions. Refer to the appropriate Electronic Parts Information.
- With Power Steering Control Module -J500-
- Can be checked in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Right Wheel Bearing Housing
- Nut
- 20 Nm +90°
- Replace after removing.
- Bolt
- 70 Nm +90°
- Replace after removing.
- Subframe
- Left Wheel Bearing Housing
- Seal
- Replace after removing the steering gear.
- Expanding Clip
