Overview - Suspension Strut And Upper Control Arm

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

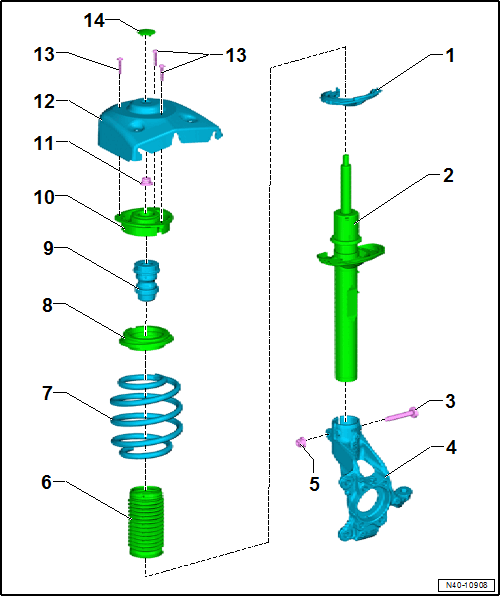

Fig 1: Exploded View Of Suspension Strut And Upper Control Arm
GWWN40-10908Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Spring Support
    • Note the installation position
  2. Shock Absorber
    • Different versions. Refer to the appropriate Electronic Parts Information.
  3. Bolt
    • 70 Nm + 180°
    • Replace after removing.
    • The bolt tip must face in direction of travel.
  4. Wheel Bearing Housing
    • Different versions. Refer to the appropriate Electronic Parts Information.
  5. Nut
    • Replace after removing.
  6. Protective Cover
    • Different versions. Refer to the appropriate Electronic Parts Information.
  7. Coil Spring
    • Removing and installing. Refer to SUSPENSION STRUT, SERVICING .
    • Surface of spring coil may not be damaged.
    • Different versions. Refer to the appropriate Electronic Parts Information.
  8. Deep-Groove Ball Bearing
  9. Stop Buffer
    • Different versions. Refer to the appropriate Electronic Parts Information.
  10. Strut Mount
    • Note the installation position. Refer to Installing .
  11. Nut
    • 60 Nm
    • Replace after removing.
  12. Body Front
  13. Bolt
    • 15 Nm +90°
    • Replace after removing.
  14. Cover
