Stabilizer Bar, Removing And Installing: Removing

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Remove the noise insulation from the subframe. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the center underbody trim panel. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

-- Remove the exhaust system bracket from the subframe -arrows-.

Fig 1: Identifying Exhaust System Bracket (Suspended Mount) Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

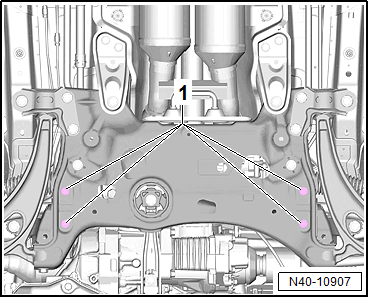

-- Remove the pendulum support bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hex nut -1- from the right and left coupling rod -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2- on the left and right sides.

-- Remove the nuts -arrows- on the left and right side of the vehicle.

Fig 2: Identifying Nuts -Arrows- On Left And Right Side Of Vehicle, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- for the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289- from the control arm -3-.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Front Level Control System Sensor -G78- -2- or Right Front Level Control Sensor -G289-

Continuation for All Vehicles

-- Remove the clips -1 and 2- for the wiring harness -3- from the subframe and the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stabilizer bar bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the steering gear bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the steering gear out of the subframe alignment sleeves.

-- Position the :VAS6931  -1- under the subframe.

Fig 3: Identifying Engine/Gearbox Jack

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe (refer to SUBFRAME, SECURING ) and lower it approximately 10 cm.

-- Remove the expanding clip -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the subframe with the :VAS6931  until the stabilizer bar can be removed toward the rear.
