SUBFRAME, Servicing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Safety Gloves
Protective headgear with visor
Press Plate:VW401

Fig 1: Press Plate
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use:VW412

Fig 2: Identifying Press Piece - Multiple Use VW412
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hydraulic Press:VAS6178

Fig 3: Identifying Hydraulic Press VAS6178
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pneumatic/Hydraulic Foot Pump:VAS6179

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

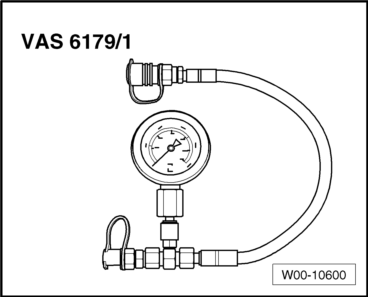

Pneumatic/Hydraulic Foot Pump - Pressure Gauge:VAS6179/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Rubber Bushing Assembly Device Kit:VAS6779A

Fig 4: Rubber Bushing Assembly Device Kit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4 from Bearing Installer - Wheel Hub/Bearing Kit:T10205A

Fig 5: Identifying Bearing Installer - Wheel Hub/Bearing Kit T10205A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Replacing the bonded rubber bushing for the pendulum support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING - 2.0L , PENDULUM SUPPORT, REMOVING AND INSTALLING - 3.6L .

-- Remove the left and right nuts -1- from the coupling rod -3-.

-- Remove the left and right coupling rod -3- from the stabilizer bar -2-.

-- Remove the stabilizer bar bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Leave the stabilizer bar in the installation position on the vehicle.

-- Remove the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING - 2.0L , PENDULUM SUPPORT, REMOVING AND INSTALLING - 3.6L .

Bonded Rubber Bushing, Pressing Out

Fig 6: Pressing Out Bonded Rubber Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

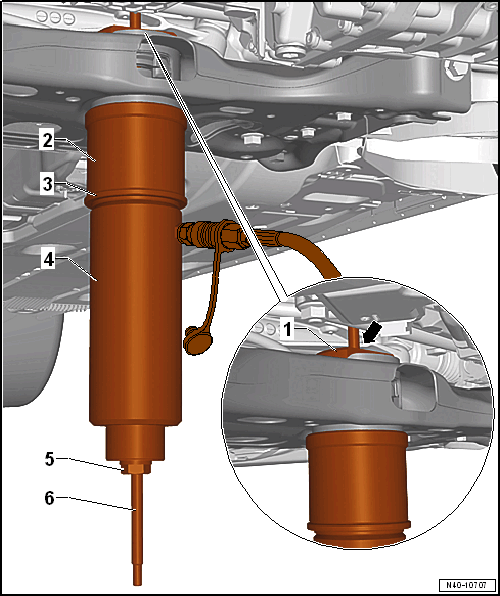

-- Position the :VAS6779/1 -item 1- with the flat side -arrow- in the direction of travel on the bonded rubber bushing.

Rubber Bushing Assembly Device Kit - Thrust Piece:VAS6779/1
Rubber Bushing Assembly Device Kit - Tube:VAS6779/4
Rubber Bushing Assembly Device Kit - Thrust Piece:VAS6779/5
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Rubber Bushing Assembly Device Kit - Hexagon Nut:VAS6779/3
Rubber Bushing Assembly Device Kit - Threaded Rod:VAS6779/2

-- Position the tool exactly flush in alignment of the bonded rubber bushing, to prevent tilting.

-- Pay attention that the :VAS6779/3 is seated correctly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The guide from the :VAS6779/3 -U- must be seated in the :T10205/13 -W-

-- The Hexagon Nut:VAS6779/3 -U- must be installed flush on the :T10205/13 -W-.

-- Connect the special tools as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press:VAS6178
Pneumatic/Hydraulic Foot Pump - Pressure Gauge:VAS6179/1
Pneumatic/Hydraulic Foot Pump:VAS6179

-- Pull the control knob on the pressure relief valve for the :VAS6179 to level -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The control knob must be in the position -1-. The setting is a maximum pressure of 200 bar. In position -2- (700 bar) the nominal load of the spindle is exceeded.

CAUTION:

Risk of destroying components due to the pressure setting being too high.

Never set the injection pressure greater that the specified (position 1 = 20 MPa).

WARNING:

Risk of personal injury and property damage caused by the spindle breaking or the assembly tool deforming. Uncontrolled flying broken pieces possible.

Wear safety gloves.
Wear protective headgear with a visor.
Pay attention when operating the foot pump, to not push the switch button in the lower position.

-- Carefully operate the :VAS6179 while monitoring the pressure indicator on the :VAS6179/1 -item 1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure that the indicator stays in the green display area. Do not exceed the maximum permitted pressure of 200 bar.

-- Press out both bonded rubber bushings until the upper bonded rubber bushing -2- is visible in the pendulum support opening -arrow- in the subframe.

Fig 7: Identifying Thrust Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

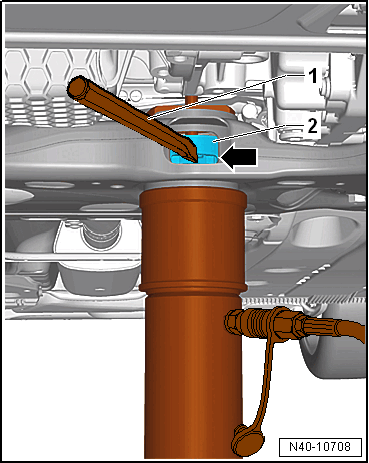

-- Perform a visual inspection of the upper bonded rubber bushing outer race -2-.

If the upper bonded rubber bushing outer race -2- is deformed, it must be destroyed through the opening for the pendulum support -arrow- in the subframe.

-- Using a chisel or similar tool -1-, make a break in the upper bonded rubber bushing outer race -2-.

This work sequence is necessary to prevent tilting of the bonded rubber bushing outer race in the area of the pendulum support opening in the subframe.

-- Completely press out both bonded rubber bushings at the same time.

Preparing bonded rubber bushings before pressing in

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the bonded rubber bushings -1 and 2- on top of each other, so the openings -arrows- lay exactly over each other.

-- Tighten both bonded rubber bushings with the original bolts -3- hand tight.

-- Apply the med marking in phases as shown on the illustration. Dimension of the phase approximately 1 mm.

-- Place the bonded rubber bushing -1- with the bolt head facing up in the larger diameter of the :VAS6779/6 -2-.

Fig 8: Bonded Rubber Bushing & Funnel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the boded rubber bushing in the :VAS6779/6 .

The bonded rubber bushing opening -arrows- must lay exactly in the recess on the :VAS6779/6 .

-- Press the bonded rubber bushing -3- all the way in the :VAS6779/6 as shown in the illustration.

Fig 9: Pressing In Bonded Rubber Bush

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Multiple Use:VW412
Rubber Bushing Assembly Device Kit -Thrust Piece:VAS6779/5 , the side with the letter "A" points upward
Bonded Rubber Bushing
Rubber Bushing Assembly Device Kit - Funnel:VAS6779/6
Rubber Bushing Assembly Device Kit - Tube:VAS6779/4
Press Plate:VW401

-- Remove the bolt from the bonded rubber bushing.

-- Insert the :VAS6779/7 -item 1- in the subframe.

Fig 10: Identifying Counter Hold

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

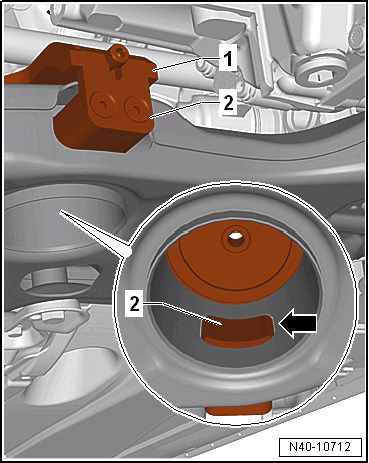

-- Insert the Hydraulic Press - Bushing Tool Kit Insert:VAS6779/7-1A -item 2- in the pendulum support opening in the subframe. At the same time push the hydraulic press bushing tool all the way up and use the bolt to attach it to the :VAS6779/7 .

-- Make sure that the Insert:VAS6779/7-1A -item 2- is seated correctly in the subframe opening.

Bonded Rubber Bushing, Pressing In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

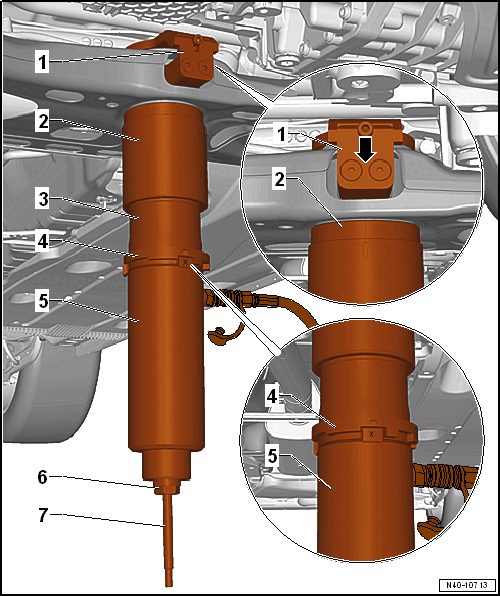

-- Install the :VAS6779/2 -item 7- in the :VAS6779/7 -item 1-.

-- Install the :VAS6779 on the subframe as shown.

Rubber Bushing Assembly Device Kit - Counterhold:VAS6779/7
Hydraulic Press - Bushing Tool Kit - Funnel:VAS6779/6 , -arrow marking- on the Funnel must be opposite of both bolts in the center -arrow-.
Rubber Bushing Assembly Device Kit - Thrust Piece:VAS6779/9
Hydraulic Press - Bushing Tool Kit -Incremental Ring:VAS6779/8 , the marking -I- on the Incremental Ring must align with the marking -X- on the Hydraulic Press - Bushing Tool Kit Thrust Piece:VAS6779/9
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Rubber Bushing Assembly Device Kit - Hexagon Nut:VAS6779/3
Rubber Bushing Assembly Device Kit - Threaded Rod:VAS6779/2

-- Connect the special tools as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press:VAS6178
Pneumatic/Hydraulic Foot Pump - Pressure Gauge:VAS6179/1
Pneumatic/Hydraulic Foot Pump:VAS6179

-- Pull the control knob on the pressure relief valve for the :VAS6179 to level -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The control knob must be in the position -1-. The setting is a maximum pressure of 200 bar. In position -2- (700 bar) the nominal load of the spindle is exceeded.

CAUTION:

Risk of destroying components due to the pressure setting being too high.

Never set the injection pressure greater that the specified (position 1 = 20 MPa).

WARNING:

Risk of personal injury and property damage caused by the spindle breaking or the assembly tool deforming.

Wear safety gloves.
Wear protective headgear with a visor.
Pay attention when operating the foot pump, to not push the switch button in the lower position.

-- Carefully operate the :VAS6179 while monitoring the pressure indicator on the :VAS6179/1 -item 1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure that the indicator stays in the green display area. Do not exceed the maximum permitted pressure of 200 bar.

-- Press in both bonded rubber bushings at the same time.

To prevent damage to the bonded rubber bushing outer race, while pushing in, pay attention that it is not tilted at the beginning.
If necessary, release the tension and press in using the :VAS6179 .

WARNING:

Risk of destroying components due to the pressure setting being too high.

Never select the foot pump mode with the higher pressure.

If the pressing in does not work with the pressure specified, the repair setup must be checked.

-- Remove special tool from the subframe and check seating of the pressed in bonded rubber bushing.

Further installation is performed in reverse order of the removal.

Tightening Specifications

Refer to OVERVIEW - SUBFRAME
Pendulum support bolts. Refer to OVERVIEW - ASSEMBLY MOUNTS .
