Mounting Bracket With Control Arm Bearing, Replacing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

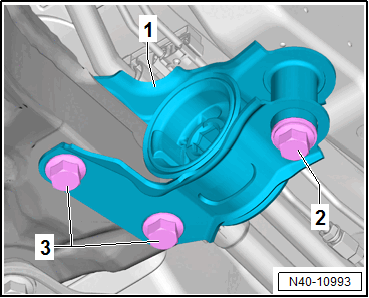

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :T10486/1 .

-- Remove the bolts -3-.

-- Remove the mounting bracket -1-.
