Lower Control Arm Bonded Rubber Bushing, Replacing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Subframe Bushing Tool Kit:3301

Fig 1: Subframe Bushing Tool Kit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing Installer - Control Arm:3346

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Carrier:3432

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing Installer - Wheel Hub/Bearing Kit :T10205A

Fig 2: Identifying Bearing Installer - Wheel Hub/Bearing Kit T10205A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hydraulic Press - Ball Joint Assembly Tools:T10254

Fig 3: Hydraulic Press - Ball Joint Assembly Tools T10254
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hydraulic Press:VAS6178

Fig 4: Identifying Hydraulic Press VAS6178
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pneumatic/Hydraulic Foot Pump:VAS6179

Fig 5: Identifying Pneumatic/Hydraulic Foot Pump VAS6179
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

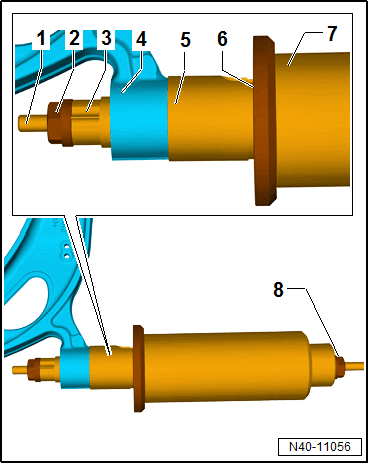

Bonded Rubber Bushing, Pressing Out

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press out the bonded rubber bushings as shown.

Hydraulic Press - Ball Joint Assembly Tools:T10254/5
Hydraulic Press - Ball Joint Assembly Tools - Nut:T10254/4
Driver:3432
Control Arm
Subframe Bushing Tool Kit - Tube:3301/4
Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Ball Joint Assembly Tools - Nut:T10254/4

Bonded Rubber Bushing, Pressing In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

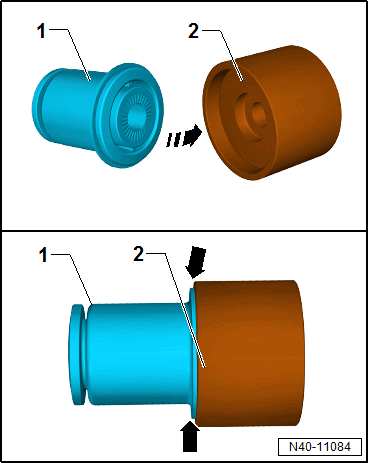

-- Insert the bonded rubber bushing -1- into the deep recess on the :3346/1 -2-.

NOTE:

The bonded rubber bushing collar must rest completely on the :3346/1 -arrows-.

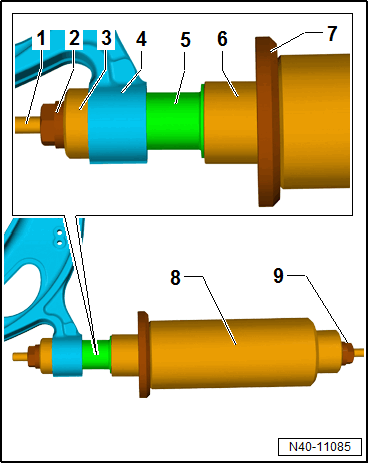

-- Press the bonded rubber bushing on all the way as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Ball Joint Assembly Tools:T10254/5
Hydraulic Press - Ball Joint Assembly Tools - Nut:T10254/4
Bearing Installer - Control Arm:3346
Control Arm
Bonded Rubber Bushing
Bearing Installer - Control Arm - Bearing Installer:3346/1
Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Ball Joint Assembly Tools - Nut:T10254/4

-- Install the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .
