Outer CV Joint, Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Clamp the drive axle in a vise with jaw protectors.

-- Loosen the clamp.

-- Fold back the boot.

-- Align the :T10382 so that the flat side of the :T10382/1 faces the :T10382/2 .

-- Attach the :T10382 to the :VW771 .

-- Remove the CV joint from the drive axle using the :T10382 and :VW771 .

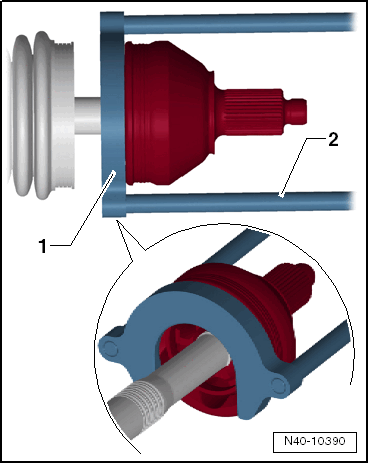

Fig 1: Identifying Outer CV Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Puller - Drive Axle - Removing Plate:T10382/1
Puller - Drive Axle - Spindles:T10382/2

Outer CV Joint, Installing

-- Install the new circlips.

-- Slide the new CV boot onto the drive axle if necessary.

-- Use a plastic mallet to install it on the shaft until the circlip engages.
