Vent In Carpet, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

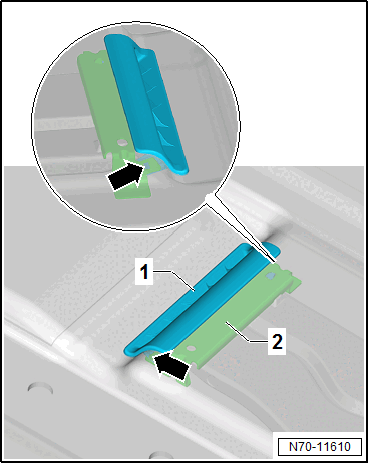

Only for vehicles with 6 seats

-- Push the carpet slightly downward and release the tabs -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vent -1- toward the rear out of the air duct bracket -2-.

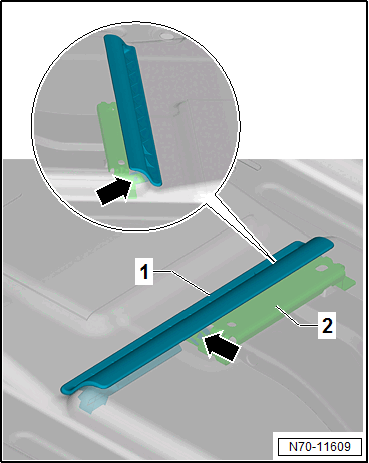

Only for vehicles with 7 seats

-- Push the carpet slightly downward and release the tabs -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vent -1- toward the rear out of the air duct bracket -2-.
