Sill Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Rear Sill Panel

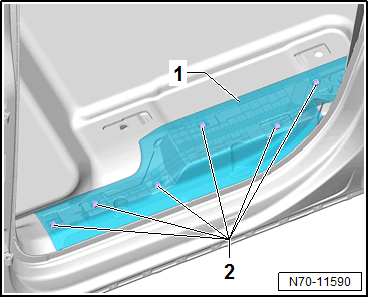

-- Remove the clips -2- on the rear sill panel -1- from the sill panel bracket using the Omega Clip Tool:T40280 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the rear sill panel -1- out of the vehicle.

Front Sill Panel

-- Loosen the rear sill panel in the transition area to the front sill panel.

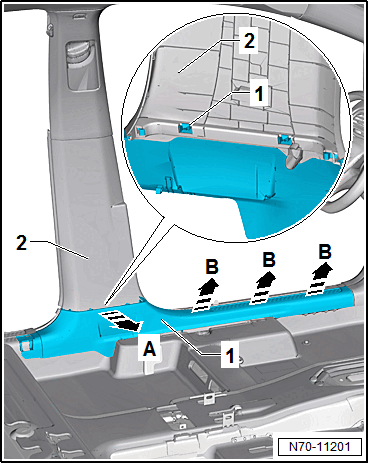

-- Release the front sill panel strip retaining tabs -1- from the B-pillar lower trim panel -2- using the Wedge Set:T10383 -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the front sill panel -1- from the side sill and door seal molding using the Wedge Set:T10383 -B arrows-.

-- Guide out the seat belt.

-- Guide the sill panel out of the vehicle.
