Rear Sill Panel Bracket, Removing And Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1783 - 2-10Nm:V.A.G 1783

Fig 1: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Fold the carpet to the side.

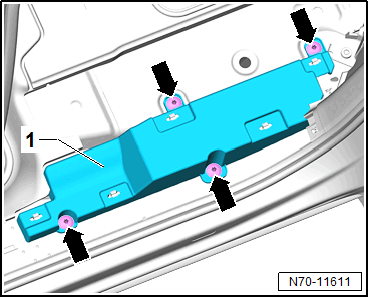

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the sill panel.

Installing

Install in reverse order of removal.

Tightening Specifications

Refer to OVERVIEW - SILL PANEL
