Overview - C-Pillar Trim Panel
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

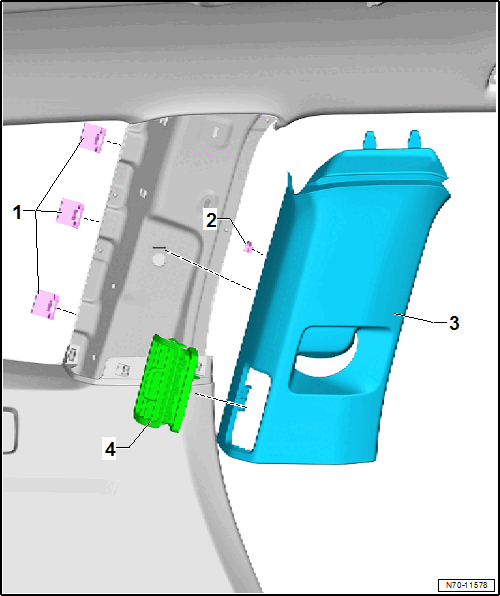

The illustration shows the C-pillar trim panel on the left side. The right side is a mirror image.
- Clip
- Quantity: 3
- Insert in the C-pillar
- Replace damaged or deformed clips
- Clip
- Insert in the trim panel
- Remove the clips that are still in the mounting point on the body using the Omega Clip Tool:T40280
- Replace a damaged or deformed clip
- C-Pillar Trim Panel
- Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Vent
- Removing and Installing. Refer to C-PILLAR AIR VENT, REMOVING AND INSTALLING .
