Overview - A-Pillar Trim Panel, Upper A-Pillar Trim Panel
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

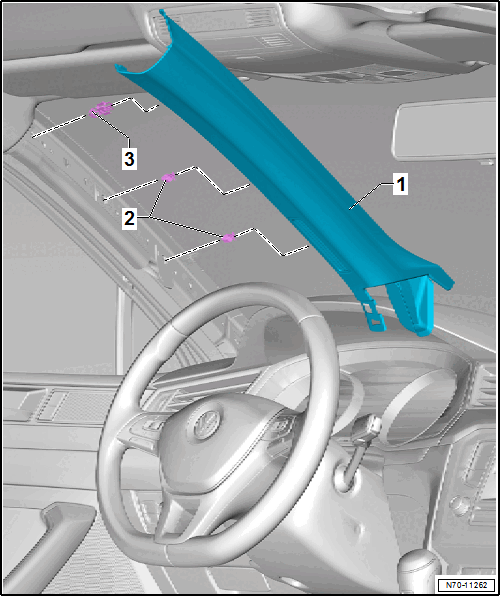

The illustration shows the A-pillar trim panels on the left side. The right side is a mirror image.
- A-Pillar Upper Trim Panel
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A-PILLAR UPPER TRIM PANEL .
- Clip
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280
- Replace damaged or deformed clips
- Clip
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280
- Replace a damaged or deformed clip
