Overview - A-Pillar Trim Panel, A-Pillar Lower Trim Panel

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

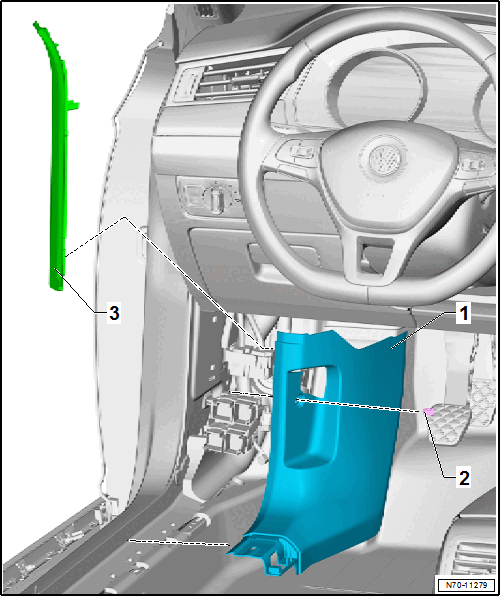

Fig 1: Exploded View Of A-Pillar Lower Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A-Pillar Lower Trim Panel
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Clip
- Replace a damaged or deformed clip
A-Pillar Gap Cover
- Removing and Installing. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .
