Footrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A-pillar lower trim panel on the driver side. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A-PILLAR LOWER TRIM PANEL, DRIVER SIDE .

-- Release the retainers -1-, unclip the footrest -2- using the Trim Removal Wedge:3409 -arrows- and remove it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

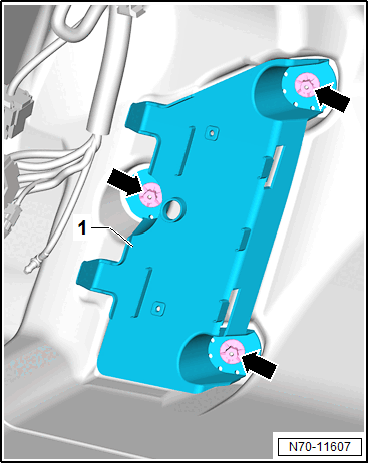

-- Push aside the carpet in the area of the threaded connections and remove the nuts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- from the threaded pins and remove under the carpet.
